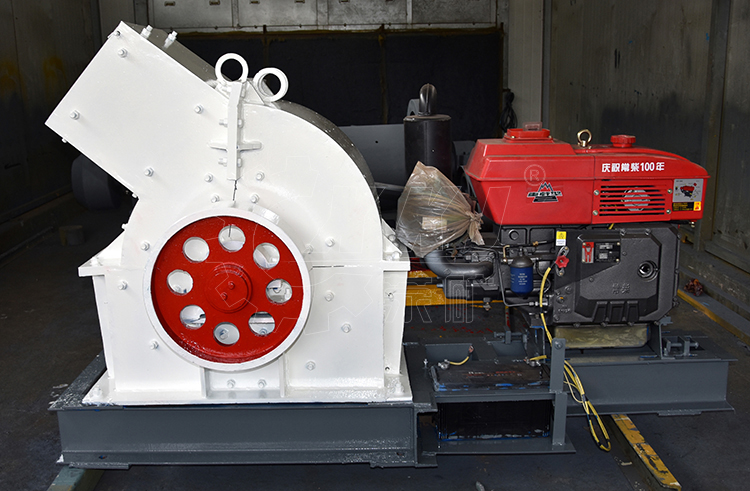

Hammer crusher is suitable to crush the medium hardness and brittle material in the mining, cement, coal, metallurgy, building materials, highway and so on. It has the simple structure, high crushing Ratio, high production efficiency, and can be dry or wet crushing. The grate gap of the equipment can be adjusted according to user requirements to get the different final sizes to meet the different needs of different users.



Why choose XKJ GROUP hammer cement crusher machine?
①Large reduction ratio (generally 10-25, up to 50), higher production capacity, uniform product, simple structure, light weight, easy operation.
②Advanced design technology, impact residence.
③Large feeding size, high yield and good grain shape.
④Super crushing, coarse, medium and fine crushing are in one step.
⑤Higher capacity, compared with the previous year, the output increased by 30%, the flat and elongated powder is less than 20%, more energy-saving.
⑥Good wear resistence, The hammer head and sieve plate are made of chromium manganese alloy, which can resist impact and wear better.





Model	Input size(mm)	Output size(mm)	Capacity(t/h)	Power(kw)	Weight(kg)
PC400×300	≤100	≤10	5-10	11	800
PC600×400	≤120	≤15	10-25	18.5	1500
PC800×600	≤120	≤15	20-35	55	3100
PC1000×800	≤200	≤13	20-40	115	7900
PC1000×1000	≤200	≤15	30-80	132	8650
PCX1300×1200	≤250	≤19	80-200	240	13600

Applicable Materials Of Diesel Engine Hammer Crusher
Granite, limestone, river pebble, quartz stone, construction waste, salt, brick, coal.

Application field Of Diesel Engine Hammer Crusher
Concentrator, refractory plant, cement plant, glass plant, electricity, metallurgy, etc.
