JAW PLATE
One-stop customization covering design, process and manufacture

Sizes: customize by drawings

Materials: high manganese steel (Mn13, Mn18), manganese chromium alloy (Mn13Cr2, Mn18Cr2), new composite materials, etc.

Applicable equipment: jaw crusher

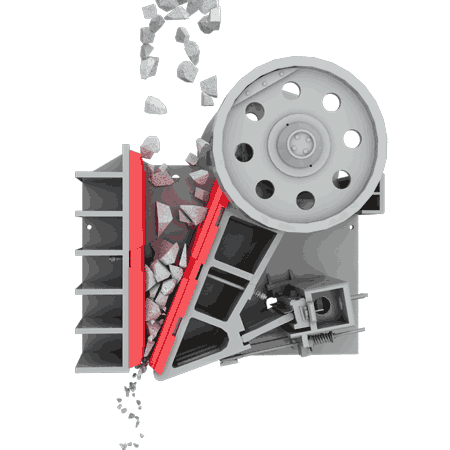

The jaw plate or jaw dies is the main wear part of the jaw crusher. A set of jaw plates usually consists of two parts: the movable jaw plate and the fixed jaw plate. During the operation of the jaw crusher, the movable jaw plate attaches to the movable jaw to perform a complex swinging motion, forming an angle with the fixed jaw plate to squeeze the stone. The crushing cavity, composed of the movable jaw and the fixed jaw, simulates the movement of animal jaws, enabling the jaw crusher to complete the crushing operation of materials.

Depending on the model of the jaw crusher, there are various sizes of jaw plate available. The jaw plates are made of new high manganese steel, ultra-high manganese steel, super strong high manganese steel, and other materials, suitable for jaw crushers of various specifications.

The jaw plate is the most consumed parts in the use of crushers. Therefore, it is necessary to control quality. In other words, the quality of a jaw crusher is actually determined by the service life of the jaw plate. The jaw crusher casing is generally not easily damaged.

Product Overview

The jaw plate, as the core component of the crushing machine, its performance directly determines the crushing efficiency and production capacity of the crusher. Our carefully developed jaw plate has won wide praise in mining, construction, metallurgy and other industries for its excellent wear resistance, high strength and stability.

Material and process

High quality material: We choose alloy steel with high hardness and high wear resistance as the main material of the jaw plate to ensure that it can withstand huge impact and friction during the crushing process.
Exquisite craftsmanship: After multiple processes such as precision casting, heat treatment, machining, etc., we ensure that the dimensional accuracy, surface quality and internal organization of the jaw plate reach the optimal state, thereby improving its service life and crushing efficiency.

Product features

High wear resistance: High-quality alloy steel materials and special heat treatment process give the E plate excellent wear resistance, and it can maintain long-term stable work even in harsh working environments.
High strength: After precision casting and heat treatment, the E plate has extremely high strength and toughness, and can withstand huge crushing force and impact.
Good stability: Reasonable structural design and high-quality material selection keep the jaw plate in a stable working state during the crushing process, reducing the failure rate and maintenance cost.
Easy to replace: We adopt modular design to make the installation and replacement of the jaw plate more convenient and quick, reduce downtime and improve production efficiency.

Scope of application

This jaw plate is widely used in all kinds of crushing machinery, such as jaw crusher, impact crusher, etc., to meet the needs of mining, construction, metallurgy and other industries for crushing materials.

Quality Assurance

We are well aware of the importance of E-plate in crushing machinery, so from raw material procurement to production and processing, to quality inspection, every link is strictly controlled to ensure that the quality and performance of E-plate meet national standards and user needs. At the same time, we provide perfect after-sales service and technical support to ensure that users get timely and effective help during use.

Specifications Of Jaw Plate

 choose us

• Professional manufacturing: We have many years of E-plate manufacturing experience and technology accumulation, and can provide users with high-quality products and solutions.
• high quality quality: We pay attention to the improvement of product quality and performance, and constantly optimize the material formula and manufacturing process to ensure that the jaw plate has excellent wear resistance, high strength and stability.
• Perfect service: We provide comprehensive pre-sales consultation, in-sales support and after-sales service to ensure that users receive timely and effective help and support during use.
•
