XJK flotation cell

XJK flotation cell
Feeding size:
Processing capacity:
0.05-7m³/min
Applicable materials:
nonferrous metal and ferrous metals
Product Description

This product is the earliest flotation machine imported from the Soviet Union, medium-sized mine return easy to achieve self-leveling, without accessory equipment, neat configuration, simple operation and maintenance, It has the disadvantages of small aeration volume and high power consumption, the impeller and the cover plate are made of rubber parts.
Mainly used for various minerals, such as gold ,silver,iron,fluorite, talc, copper, lead,zinc, nickel, molybdenum ,etc. Also applicable for the separation of nonferrous metal and ferrous metals.

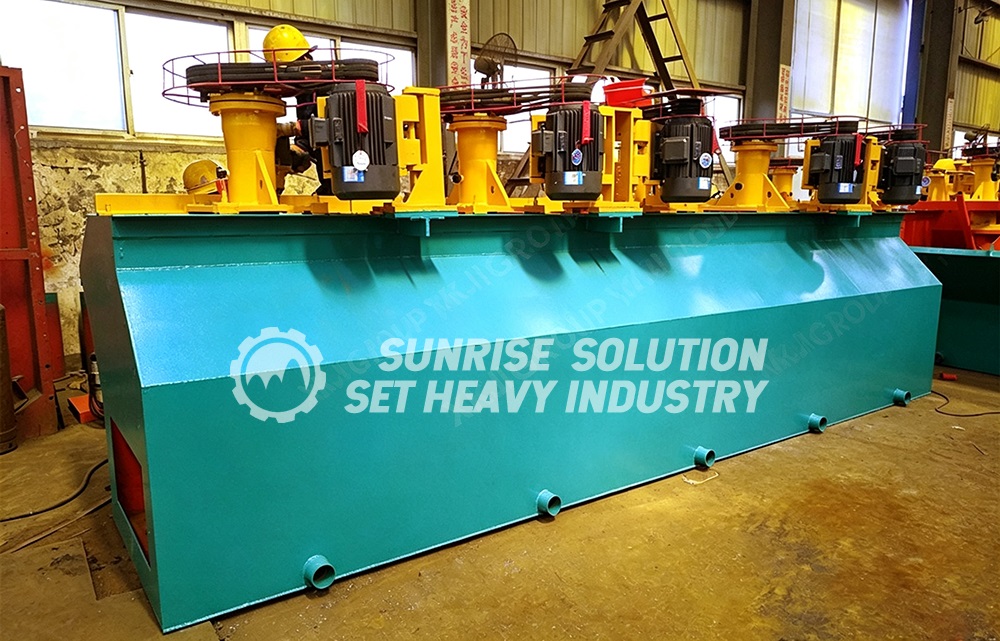

XJK flotation cell

Features

1. Large air-absorption capacity and low energy consumption
2. Optimistic structure design & Excellent performance
3. Reasonable circulation of mineral slurry
4. Automatic control Easy to adjust

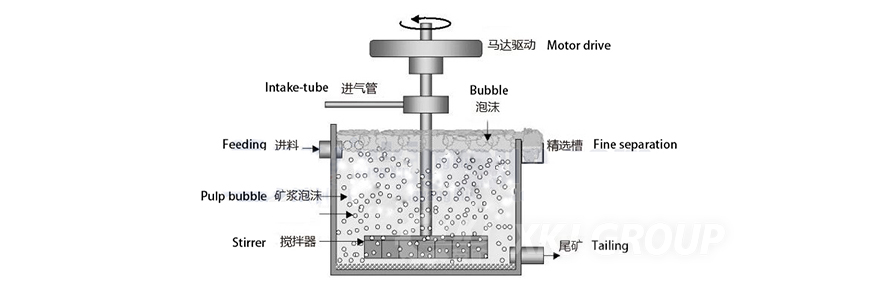

XJK flotation cell

Technical Parameter
Type  Volume (m3/cell) Impeller diameter
(mm)
Capacity
(m3/min)
Impeller Speed
(r/min)
Scraper speed
(r/min)
Impeller Motor(KW) Scraper Motor(KW) Overall Dimension four-cell in one body(mm) Weight
(T /cell)
XJK-0.13 0.13 200 0.05-0.16 600 17.5 1.5 0.55 2100*865*900 0.35
XJK-0.23 0.23 250 0.12-0.28 500 17.5 1.5 0.55 2625*1130*1290 0.41
XJK-0.35 0.35 300 0.18-0.4 480 17.5 1.5 0.75 3012*1350*1320 0.6
XJK-0.62 0.62 350 0.3-0.9 400 16 3 1.1 3800*1500*1550 0.9
XJK-1.1 1.1 500 0.6-1.6 330 26 5.5 1.1 4680*1820*1950 1.4
XJK-2.8 2.8 600 1.5-3.5 280 26 11 1.5 7750*1600*1700 2.5
XJK-5.8 5.8 750 5-7 240 26 15 1.5 / 3.6
