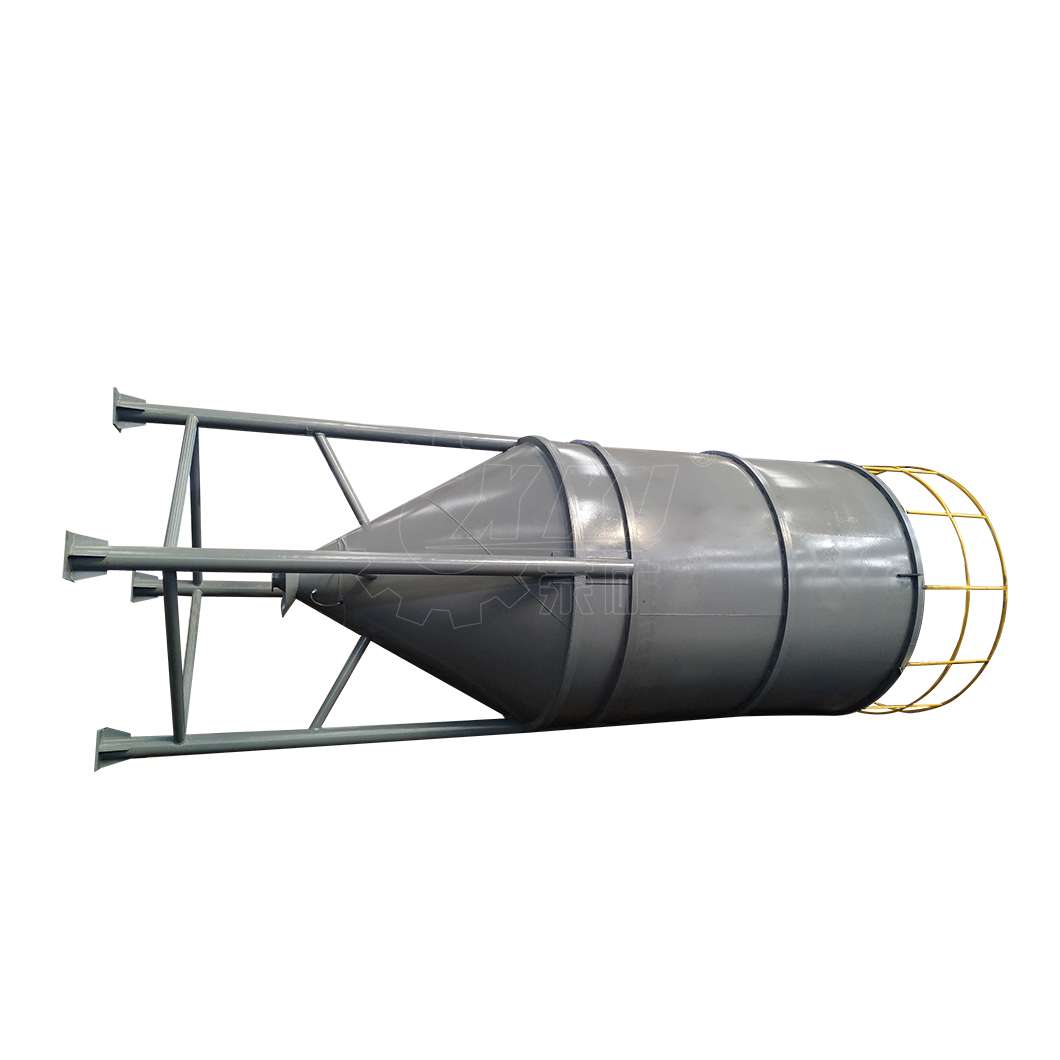

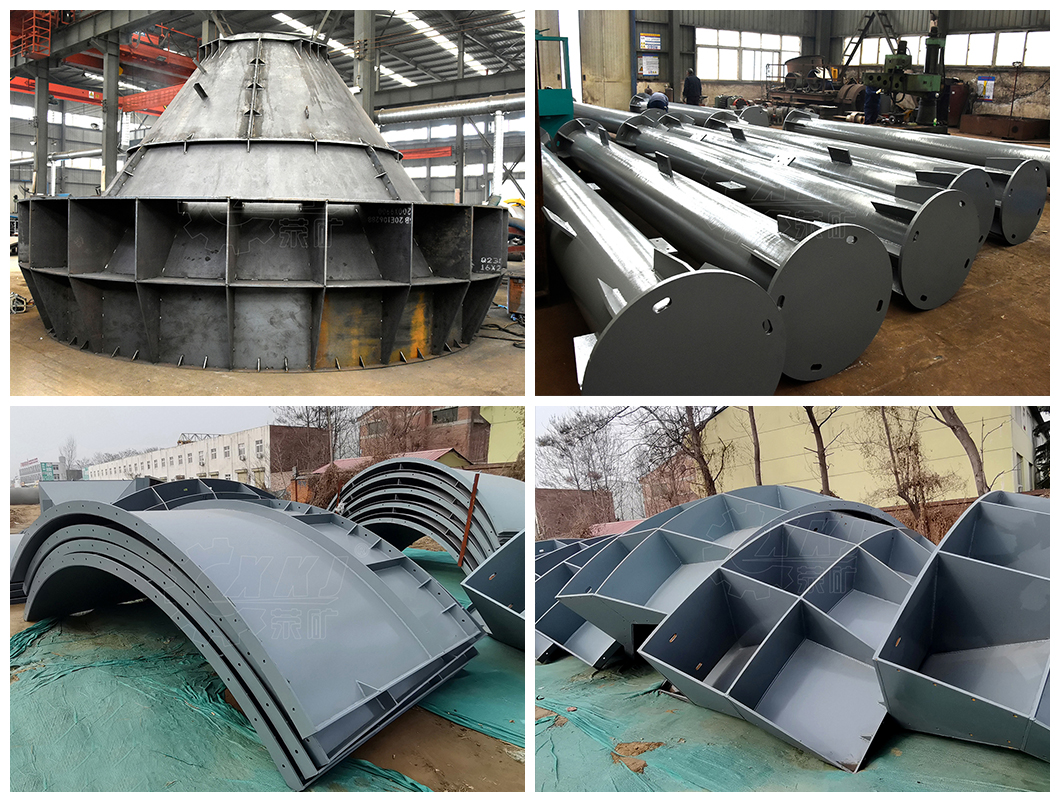

The silo is combined by four main parts: the cover, wall sections, cones and supporting legs. All parts are pressed by special machine and mould,especially the wall sections which can be changed every place on the wall.Shipping in Container, installation on site.
|
Volume
|
Diameter
|
Silo body height
|
Layers of silo body
|
Pieces each layer
|
Weight
|
|
50t
|
3160 mm
|
4260 mm
|
3
|
4
|
4.5 T
|
|
100t
|
3160 mm
|
8700 mm
|
6
|
4
|
6 T
|
|
150t
|
3160 mm
|
13000 mm
|
9
|
4
|
9 T
|
|
200t
|
4000 mm
|
11360 mm
|
8
|
5
|
12 T
|
|
200t
|
4500 mm
|
8700 mm
|
6
|
6
|
12 T
|
|
300t
|
5300 mm
|
8700 mm
|
6
|
8
|
17 T
|
|
500t
|
6800 mm
|
7300 mm
|
8
|
8
|
21 T
|
|
600t
|
6800 mm
|
8700 mm
|
6
|
8
|
28 T
|
|
800t
|
8000 mm
|
10100 mm
|
7
|
10
|
43 T
|
|
1000t
|
8000 mm
|
13200 mm
|
9
|
10
|
56 T
|
The assembled bolt steel silo consists of feeding system, material storage system, unloading and safety anti-riot system, dust removal system, material level detection system and other supporting equipment facilities.
1.Concrete batching plant
2.Factory bulk material warehouse storage system
3.Construction engineering transfer station
4.Bulk material logistics transfer system
5.Brick making machine production line
6.Cement plant
7.Other bulk material storage (reconstruction and expansion) projects
